A corrugated retail display box that ships flat and folds up into a counter display with a standing header card. The tray holds and faces your products at the point of sale while the header carries branding above them. Printed full color for shelf and checkout promotions, launches, and sampling.
An E-flute corrugated mailer with a full-color printed interior and an all-paper die-cut insert that cradles every part with no plastic. Plain kraft outside, branded reveal inside. Built for bathroom and sanitary kits shipped direct to customers.
Custom corrugated mailer box with tab lock roll end structure, self-seal adhesive closure, and tear strip opening. Available in kraft or printed finish, with optional inserts for organized packing.

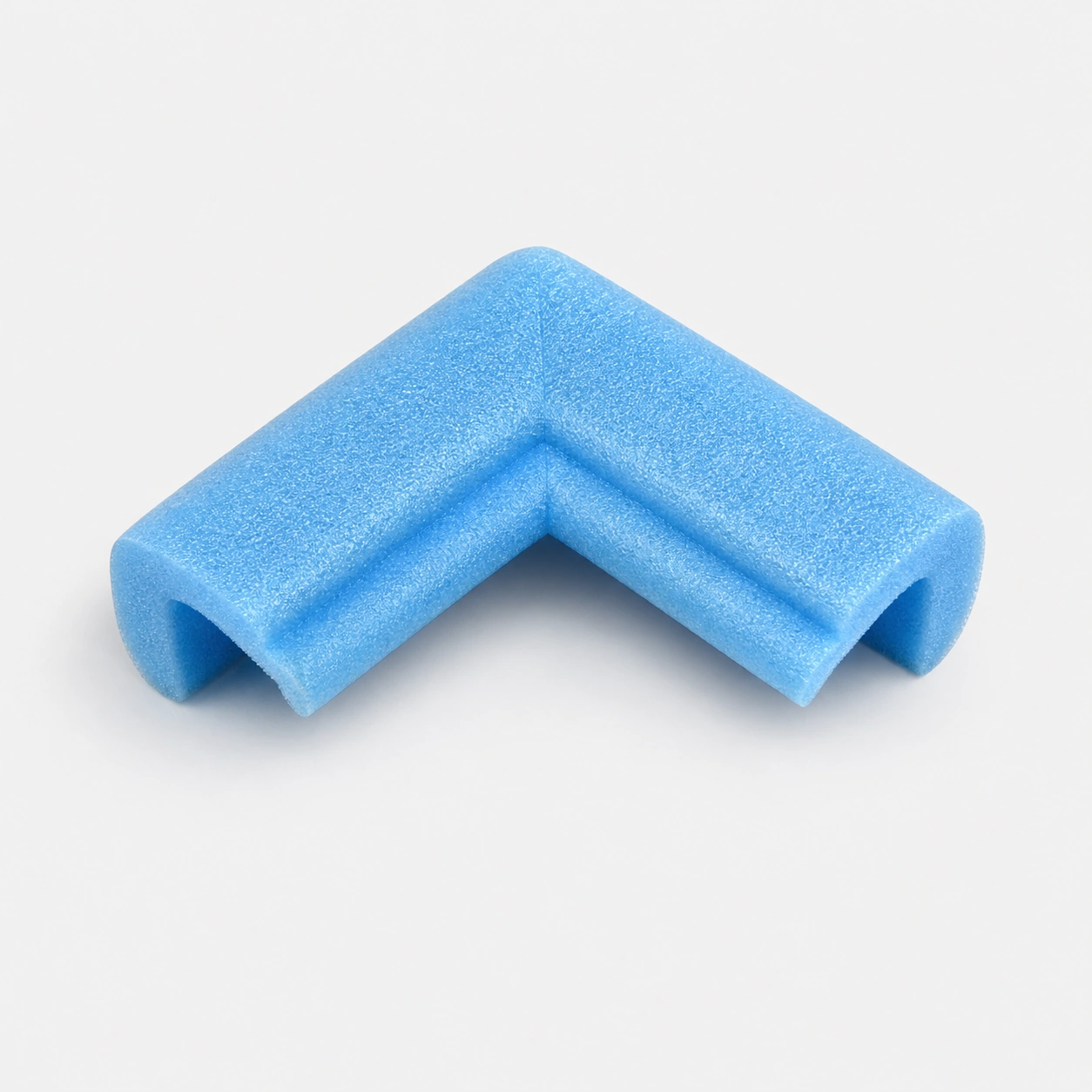

The EPE foam corner protector is a soft, resilient polyethylene foam guard with a U-channel that clips over an edge or corner to absorb knocks in storage and transit. As an L-shaped corner guard it wraps the vulnerable corner of furniture, glass, or panels, and paired with a foam edge protector along the straight sides it shields the whole perimeter without scratching the surface.
| Option | Standard (as shown) | Customizable range |
|---|---|---|
| Type | L-shaped U-channel corner protector | Edge profile: U, round, half-round; sheet |
| Material | Blue EPE foam | White EPE, anti-static pink or black, EPP |
| Fit (U-gap) | Sized to your edge thickness | About 8-45 mm inner gap |
| Arm length | Sized to your product | Any length |
| Wall thickness | Configurable to impact level | - |
| Color | Blue | White, pink (anti-static), black |
| Density | About 25-30 kg/m3 | Configurable to cushioning |
| Hold | Self-gripping U slot | Adhesive-back, strap slot |
| Tooling / MOQ | Configurable, no strict minimum | - |
| Lead time | Configurable to order | - |
The U-channel is cut to your edge thickness, so the corner protector grips on its own without tape and does not slip in transit. Tell us the panel or frame thickness and the corner radius, and the inner gap and wall are set to match, from a thin glass pane to a thick furniture panel. A tighter gap grips harder, a softer wall takes a bigger drop, and both are tuned to the load.

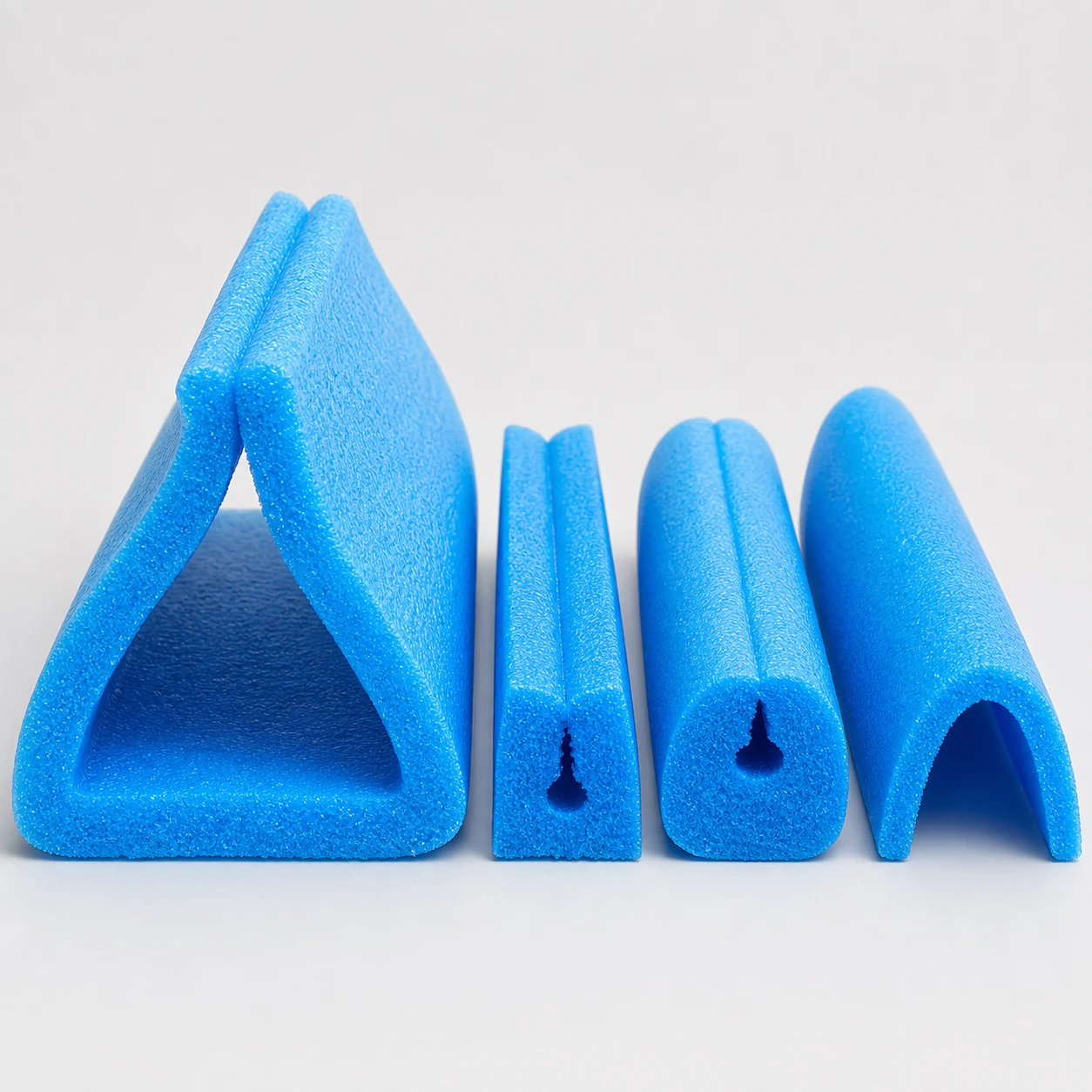

A furniture corner protector rarely works alone. The same EPE is run as a U-shaped edge profile that slides onto a straight edge, with round and half-round profiles for framing, tube, and rod. Fit the L-shaped corner guard to each corner and run the edge profile between them, so nothing hard touches the product face along the whole perimeter.
EPE is an expanded polyethylene foam that is soft, resilient, and springs back after impact, so it absorbs repeated knocks that would crack a brittle foam. It does not shed dust and will not mark a painted, polished, or glass surface, which paper corners can scuff. It is light and moisture-resistant, so the guard adds protection without much weight and shrugs off damp transit.
Use the foam edge protector and corner guard for furniture and cabinets, glass and mirrors, doors and aluminium window frames, framed art and panels, appliances, and machinery edges on a pallet. The soft foam takes forklift and handling knocks, the self-gripping U-channel stays put without tape, and anti-static grades protect electronic enclosures on the same line.
Send your edge thickness, corner radius, arm length, and the color or grade you need, and we will quote the corner and edge profiles with a sample for your approval. ISO 9001 and 14001 systems keep density, gap, and cut length consistent lot to lot, so every guard fits the same.
Will it stay on without tape? Yes. The U-channel is cut to your edge thickness so it self-grips and holds through handling. If the edge is very thin or slick, we add an adhesive back or a strap slot. Give us the edge thickness and we set the gap so it clips on and stays put.
EPE foam or paper corner protectors, which is better? EPE cushions impact and springs back, will not scratch a finish, and resists moisture, so it suits furniture, glass, and coated surfaces. Paper corners give higher edge-crush for strapped pallet loads. Tell us the product and the risk and we advise which fits, or combine both.
Can I get an anti-static version? Yes. The same corner and edge profiles come in pink anti-static or black conductive EPE for electronic enclosures and sensitive assemblies. We quote them to the surface-resistance band your ESD program needs, alongside the standard blue or white foam.
What is a realistic order quantity? There is no strict minimum, but the profile die and setup spread over the run, so small batches cost more per piece and price drops with volume. Tell us your annual volume and we advise the break points.
