A corrugated retail display box that ships flat and folds up into a counter display with a standing header card. The tray holds and faces your products at the point of sale while the header carries branding above them. Printed full color for shelf and checkout promotions, launches, and sampling.
An E-flute corrugated mailer with a full-color printed interior and an all-paper die-cut insert that cradles every part with no plastic. Plain kraft outside, branded reveal inside. Built for bathroom and sanitary kits shipped direct to customers.
Custom corrugated mailer box with tab lock roll end structure, self-seal adhesive closure, and tear strip opening. Available in kraft or printed finish, with optional inserts for organized packing.

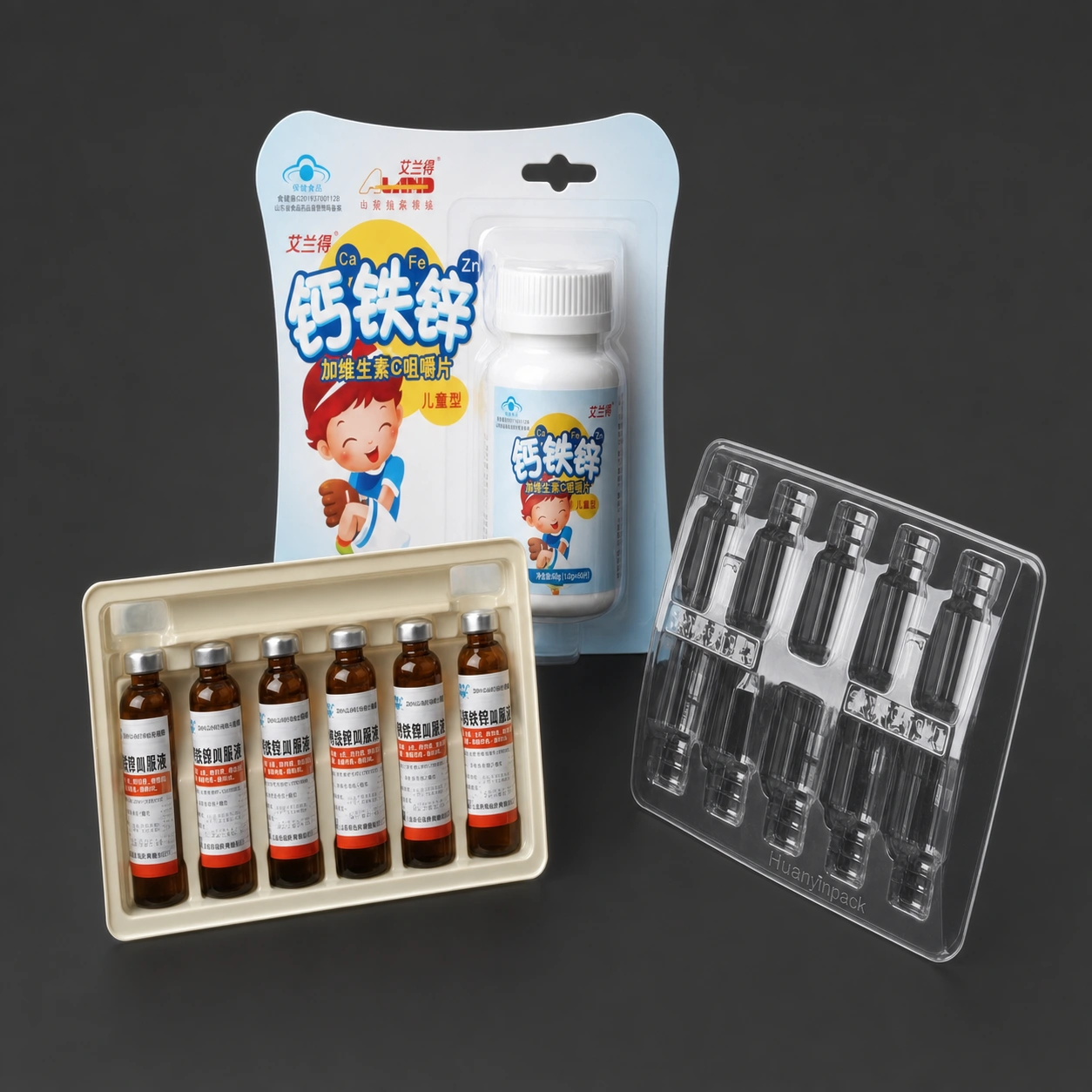

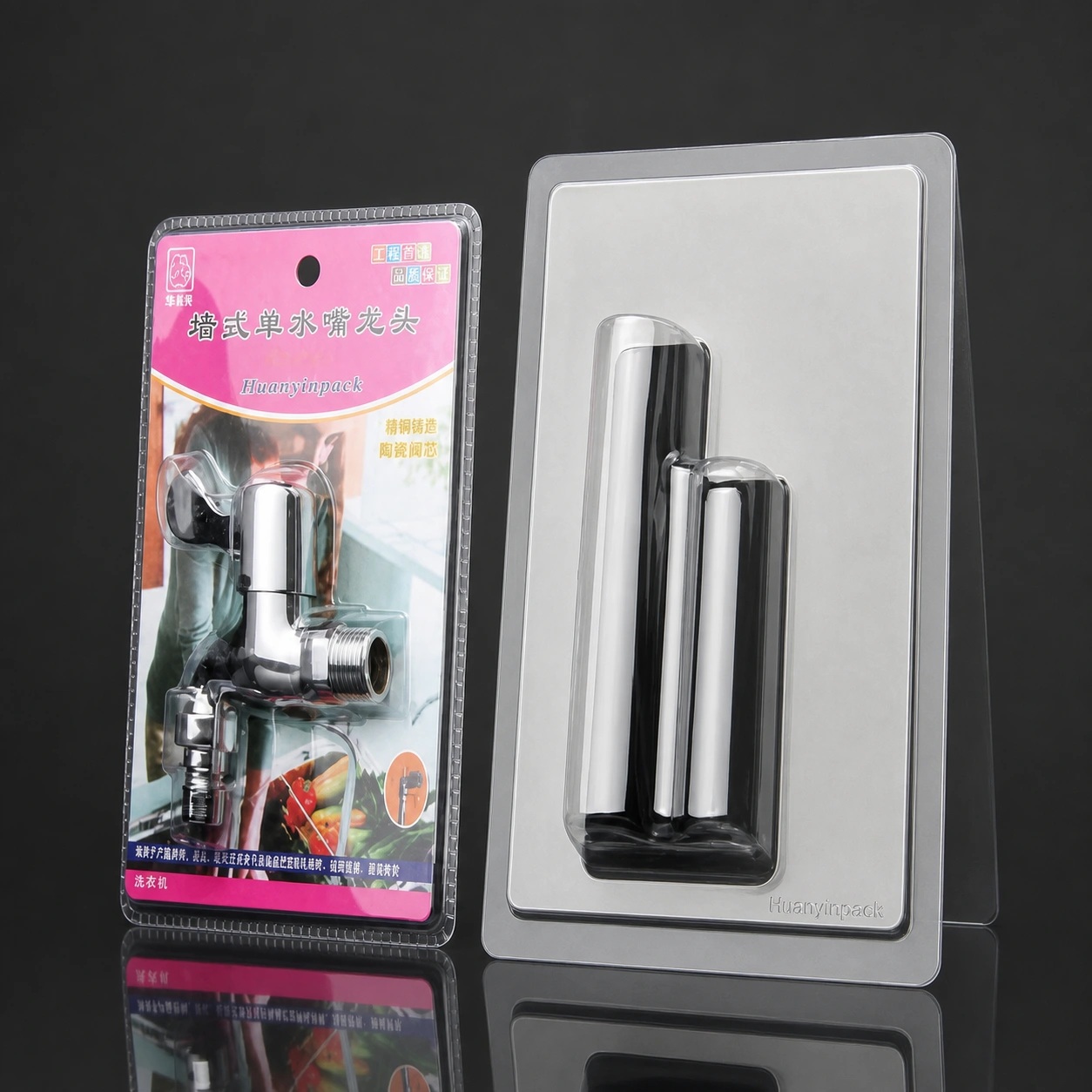

The clear PET blister tray seats each product in its own cavity so a boxed set stays neat, faces the same way, and does not rattle. It is a thermoformed PET tray, formed to the exact shape of your bottles, vials, or parts, and it drops straight into a folding carton or rigid box as a fitted product insert tray.
| Option | Standard (as shown) | Customizable range |
|---|---|---|
| Type | Multi-cavity insert tray | Single cavity, blister, clamshell, two-tier |
| Material | Crystal-clear APET (PET) | rPET, PS, PVC, PP (heat), PC (battery) |
| Gauge (wall) | Configurable to product weight | 0.3-0.8 mm |
| Color / clarity | Crystal clear | White, black, tinted, matte |
| Cavities | Formed to your layout | Any count, fitted to each item |
| Anti-static (ESD) | Standard, not treated | Anti-static coated or compounded grades |
| Branding | Debossed logo | Silk-screen, label |
| Recycling | Recyclable PET | rPET content on request |
| Tooling / MOQ | Configurable, no strict minimum | - |
| Lead time | Configurable to order | - |
Each cavity is thermoformed to one item, so bottles, vials, ampoules, or hardware sit tight and upright with no loose movement. A multi-cavity insert tray keeps a full kit aligned for a clean unboxing and faster hand-packing on your line. Send a sample or drawing and the sample room forms the cavities to match.
The standard sheet is crystal-clear APET, which shows the contents and prints and debosses cleanly. APET is recyclable and rPET is available for a recycled-content story. White, black, and tinted are options for a premium or discreet look. For heat or hot assembly, PP or PC is used instead, since APET softens.
For electronic parts or components, this tray is available as an anti-static tray. Anti-static is quoted by the surface-resistance band your ESD program needs, made either as a coated grade for one-way shipment or a compounded grade for returnable turnover trays. Tell us the resistance target and whether the loop is one-way or returnable.
Use the product insert tray for health supplements, oral-liquid bottles, ampoules and vials, cosmetics, hardware fittings, and small electronics. The clear PET shows the goods through a window box, the fitted cavities protect fragile glass in transit, and the flat tray stacks and de-nests fast for packing.
Send your product dimensions, the cavity layout or a sample, and the order quantity, and we will form a dieline and quote the tray with a sample for your approval. ISO 9001 and 14001 systems and clean-room thermoforming keep the parts consistent lot to lot.
Can you form the tray to my exact product? Yes. Send a sample or a drawing with each item's dimensions and the layout you want, and the sample room thermoforms the cavities to fit. You get a clear sample to check fit and de-nesting before production tooling is cut.
What is a realistic order quantity? There is no strict minimum, but the forming tool and sheet setup spread over the run, so small batches cost more per piece and price drops sharply with volume. Tell us your annual volume and we advise the break points.
Is the tray food or pharma safe? For direct food or medical contact we quote a virgin, food-contact-certified sheet and skip regrind. Tell us the contact type and destination market so we match the right grade and certification. Standard industrial trays use a normal APET sheet.
PET, PS, or PVC, which should I choose? APET is the clear, recyclable default and the retail standard. PS is cheaper for opaque turnover trays. PVC seals easily but faces retail restrictions and has no recycling story. We recommend APET or rPET unless a specific line needs another sheet.
